功能：門扇雙面同時加工，省場地、省人工、效率高；自動進出料，順逆向進出料任意切換，滿足連線的需要；自動換刀，滿足復雜圖形的加工。

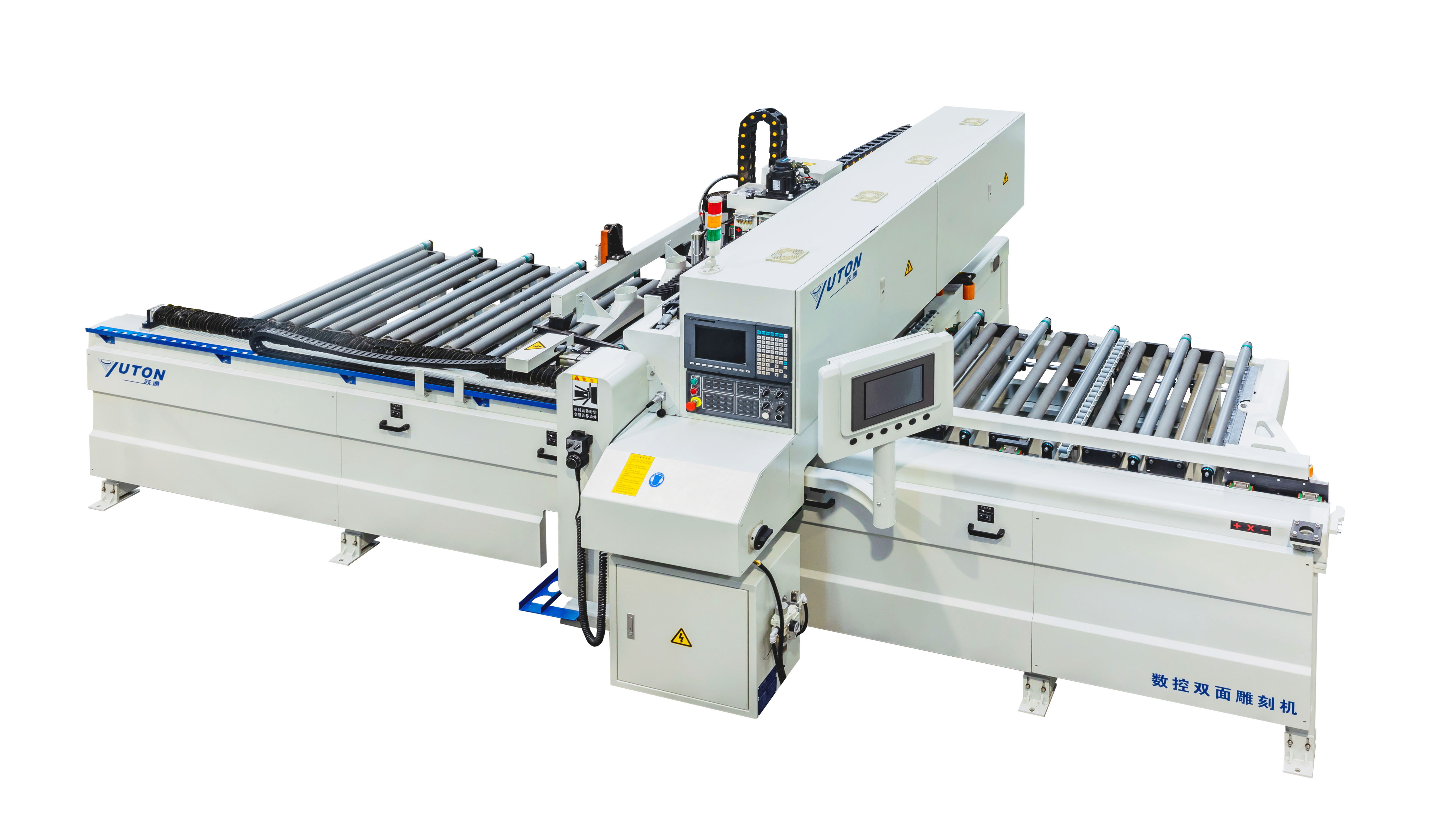

Function:This machine can engrave on door's double surfaces at the same time,save area & labor,high efficiency;automatic feed in & feed out,forward & backward feed in & feed out can be randomly shifted to satisfy demand of composing a line;automatic tool change for complicated shape machining.
技術參數
| 工件長度 Workpiece length |
1800-2400mm |
| 工件寬度 Workpiece width |
400-1100mm |
| 工件厚度 Workpiece thickness |
30-60mm |
| 上下主軸功率 Upper & bottom main spindle power |
2×9kw |
| 主軸最高轉速 Max rotation speed of spindle |
18000rpm |
| 刀庫形式及容量 Tool magazine type & capacity |
直線排列,上下各4把 Linear ranged,each 4 pcs for top & bottom |
| 外形尺寸 Overall dimensions |
5500×2800×2100mm |
| 重量 Weight |
4800kg |
|
